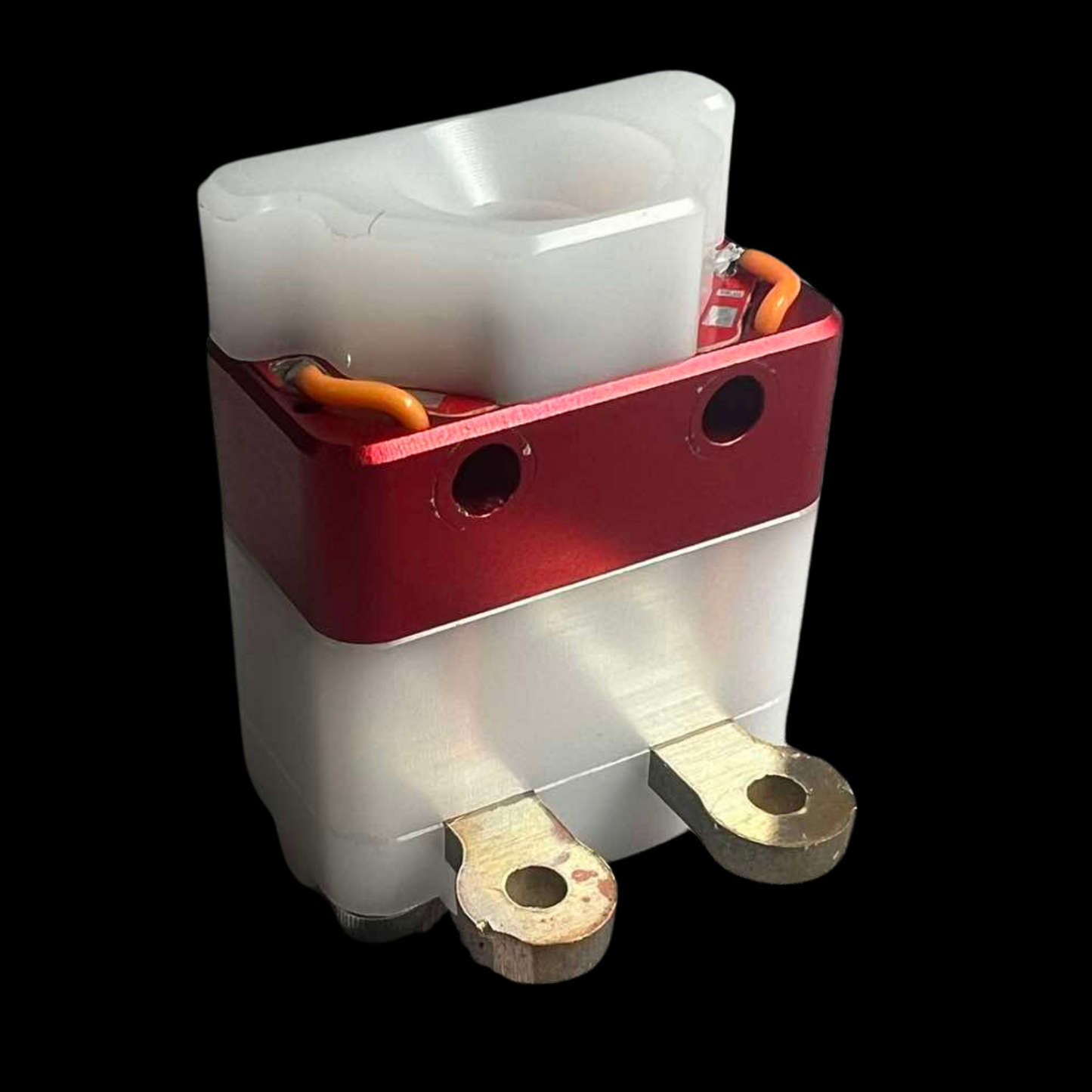

Featherweight Rampage Switch

Features:

High power switch with soft start, activated with allen wrench.

Optional vertical mounting bracket here.

Inline style coming soon.

• Plastic body with copper bus bars
• AgCdO spring loaded, arc resistant contacts
• Actuation with 3mm allen key
• Lead-in to align allen key with actuation bolt
• Mounting holes fit either M3 or #6 bolt
• Aluminium body precharger
• Precharger requires no additional resistors or wiring
• Precharger designed for allen wrench with a 1/4" round shank
(McMaster-Carr PN: 83375A83)

• Optional Indicator LED (Some Assembly Required)
• Available in other materials on request

Weight: 42g
Body dimensions (excluding copper tabs): 28x16x37mm

Documentation and CAD model available here.
