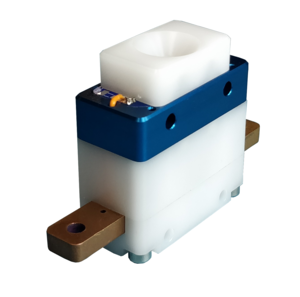

OYES Switch 10

High power switch with soft start, activated with allen wrench.

Used in World Champion BattleBots End Game and Tantrum, and Re-Mars event winner Hypershock.

• Plastic body with copper bus bars
• AgCdO spring loaded, arc resistant contacts
• Available in configurations: 'Inline' or 'Side
• Actuation with 4mm allen key
• Leadin to align allen key with actuation bolt
• Mounting holes fit either M3 or #6 bolt
• Aluminium body precharger
• Precharger requires no additional resistors or wiring
• Precharger designed for allen wrench with a 1/4" round shank
(McMaster-Carr PN: 83375A84)

• Optional Indicator LED (Some Assembly Required)
• Available in other materials on request

Cad models and drawings available here.
